MA-330

MA-330

Marex 330

The new Marex 330 Scandinavia was designed as a smaller version of the Marex flagship – Marex 375 and as the next edition of the former Marex Scandinavia. It is a fully planing boat. The hull and deck are completely new. Our previous customers wished for a closed boat with a generous sitting area inside as well as a large sitting area outside and that is what we developed! This feature makes the boat suitable for many friends and easy day cruising. A sliding pilot door at the helm has also been requested and built in for easy deck access, thus making mooring and handling much easier. To meet different markets and various needs, the boat can be delivered with either a single or a double engine, both shafts or sterndrives. The cruising speed is from 23 to 30 knots and top speed from 28 to 38 depending on the engine power chosen. When properly enclosed the 330 Scandinavia is warm and makes the summer season last longer in the northern regions and at the same time can easily be cooled with a large air conditioner in warmer climates. The boat has a soft roof in the aft and a front hardtop. The canopy solution is the absolute quickest on the market – it is a sliding roof system with the side curtains stored in the targa arch. Just a minute from a completely closed to a fully open boat.

A double dashboard can fulfil all todays needs for all sorts of instrumentation. It also has integration for iPad and similar devices. Our efficient solar panels can optionally be mounted on the roof with up to 900 watts of charging power – enough to keep the boat without shore connection over a long period of time even with the fridge and freezer permanently on. The roof comes with an optional mounting rack for the adventurous. A place for bicycles as well as paddle boards or kayaks. Front deck’s sun bed can be thrown to the water as a floating, for kids and parents to play on as their own private beach.

The co-pilot seat can flip over, so that the passengers can enjoy sitting in the driving direction and enjoying the trip in the saloon area. Cooking facilities are really spacious, even for the most passionate gourmets. In addition, the aft part of the boat can be equipped with a large grill. The aft sitting group can be delivered with many options like an extra fridge, ice-makers, extra sitting bench, storage or just open space. The need for storage is well taken care of all over the boat. Below deck: by placing the shower in the centre of the boat we were able to make a highly practical bathroom area. It is generous in space, standing height and it also gives way for a huge front master bed in the front cabin. The mid cabin is spacious as well and has enough room for two individuals to sleep and live in comfortably. As several marinas and lakes have restrictions on size – the 330 Scandinavia can be delivered with either a long or a short bathing platform.


Specifications

Lenght overall 10,49 (m) 34'-5''

Width 3,40 (m) 11'-2''

Depth 1,10 (m) 3'-7"

Dry weight 5500 kgs 12,125 lbs

Fuel tank 650 L 171 US gal.

Water tank 300 L 79 US gal.

Black water tank 200 L 53 US gal.

Grey water tank 160 L 52 US gal.

Number of passengers* 8

Category B

Fuel tank CE

Cabin 4 + 2


Standard Equipment

Antifouling boat + shaft
Battery charger (30A) and shore connection with 25m cable
Battery pack (3 x lead-acid deep discharge + 1 x lead-acid start for each engine) (~385Ah)
Bilge pump automatic (2pcs)
Canopy
Curtains in cabins
Defroster 10kW + hot air outlet in cockpit
El. main switches with buttons on dashboard and battery monitoring
Fire alarm in all cabins + engine room
Fridge 90L
Gas cooker
Hardtop
Heater 5,5kW + CO alarms in cabins
Hot water w/120V-boiler 60L
Interceptors / trimflaps
Propeller BOW 4hp with remote control
Radio FUSION with external antenna and speakers
Side door driver
Shower on platform
USB in all cabins
Teak on gunwale (under rails), MAREX developed ash saloon floor
Toilet electrical with electrical discharge and septic tank indication
Transportation wrapping
TV antenna with TV outlets
Windows wipers & washer from main fresh water tank
Available with five different motor choices;
- 1 x Volvo Penta D6-380 (380hp) + Soft Pack
- 1 x Volvo Penta D6-440 (440hp) + Soft Pack
- 2 x Bravo3 Mercury Diesel 3,0L 270 SD (2x270hp) + Joystick Axis Premium
- 2 x DPS Volvo Penta D3-220 (440hp) + Soft Pack * Joystick could be added
- 1 x Volvo Penta D6-480 (480hp) + Soft Pack (reverse shaft)


Options & Part Number

Air conditioner- price per cabin / MA-43300-03

Anchor chain s/s instead of lead rope (50m) / MA-43300-04

Anchor chain counter on dashboard / MA-43300-05

Anchorwinch AFT electric with lead-rope (14mm X 50m) with remote control / MA-43300-06

Anchorwinch FRONT electric with lead-rope (14mm X 50m) with remote control / MA-43300-07

Anchorwinch prepared for, el wires pulled through / MA-43300-08

Audio option 2: standard + amplifier + subwoofer / MA-43300-09

Bar chair on table column (1pcs) / MA-43300-10

Battery extra 95Ah (price is per battery) / MA-43300-11

Battery upgrade to service-free AGM (price is per battery) includes charger upgrade / MA-43300-12

Bedding set for 1 bed (price per set: includes 1 sheet+ 2 blanket covers 140x200 + 2 pillow covers 50x70) / MA-43300-13

Bow sprit with ladder / MA-43300-14

Camera for back view / MA-43300-15

Courtesy lights / MA-43300-16

DAB (if You don’t have FM) module for FUSION radio / MA-43300-67

Davits, foldable in s/s / MA-43300-17

Dimmers for LED lights (price per one group) / MA-43300-18

Dimmable mood lights on wooden rails / MA-43300-19

Drop down table in saloon + cushion top (bar chair needs to be selected) / MA-43300-20

Installation of a switch or any socket (12V/antenna/230V/etc.) The place must be specified (price per item) / MA-43300-21

El sockets of UK;CH;NZ;AU standards / MA-43300-22

Extra fridge 51L (not possible with freezer option) / MA-43300-23

Extra folding step at helm station / MA-43300-24

External window sun protective cover / MA-43300-25

Fenders w/socks & Marex logo (4pcs) + mooring ropes (6 x 7m) / MA-43300-26

Foldable radar mast / MA-43300-27

Freezer/fridge drawer (-15…+4) 35L ( 1 or 2 units - not possible with fridge 51L option) / MA-43300-28

Gas oven / MA-43300-29

Generator diesel Whisper power Marine (~4kW) + 6A separate charger / MA-43300-30

Grill option in cockpit / MA-43300-31

Grey water tank / MA-43300-32

Glomex Wifi/4G Webboat LITE (4G requires SIM Card) / MA-43300-33

High pressure deck wash pump from fresh water tank and sea + automatic furling / MA-43300-34

Inverter combi 12/110V 2000 with 60A charger instead of STD / MA-43300-35

Inverter combi 12/110V 3000 with 100A charger instead of STD / MA-43300-36

LED docking lights top mounted / MA-43300-37

Long platform version (with no teak not available) / MA-43300-38

Magnezium anodes instead of zinc/aluminium / MA-43300-39

Mosquito net for aft deck door / MA-43300-40

Mosquito nets set for all windows (not for side door) / MA-43300-41

Over matrasses set (visco-elastic memory material) (all cabins) / MA-43300-42

Prepared for hydraulic autopilot (hydraulic hoses, 12V, fuse) shaft / MA-43300-43

Propeller AFT thruster 4hp with remote control / MA-43300-44

Roof rack for sports equipment (compatible with foldable radar mast) / MA-43300-45

Rudder possition for shaft / MA-43300-46

Searchlight with joystick control / MA-43300-47

Shore power automatic furler / MA-43300-48

Sitting bench on the aft platform / MA-43300-49

Solar panels 444W / MA-43300-50

Solar panels ~1000W / MA-43300-51

Sun deck/floating mattress on the front deck / MA-43300-52

Lounger on the front deck with floating mattress / MA-43300-53

Teak option 1: Full pack Options 2,3,4 included (synthetic teak option +5%) / MA-43300-54

Teak option 2: Sidewalks (synthetic teak option +5%) / MA-43300-55

Teak option 3: Platform (synthetic teak option +5%) / MA-43300-56

MAREX developed ash option 4: Aft deck floor (synthetic teak option +5%) / MA-43300-57

Transportation protection /cover / MA-43300-58

Underwater lights 2 pcs on transom (color: white) / MA-43300-59

Underwater lights 2 pcs on transom (color: RGB) / MA-43300-60

Volvo Penta active corrosion protection for z-drives (double engine) / MA-43300-61

Volvo Penta active corrosion protection for z-drives (single engine) / MA-43300-62

Window openable port side / MA-43300-63

Zipwake dynamic trim control system / MA-43300-64

Winter conservation of the boat before delivery/ MA-43300-65

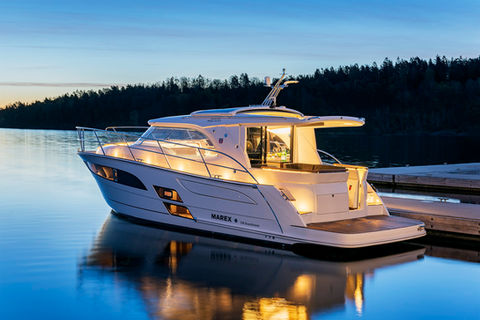

Exterior Gallery

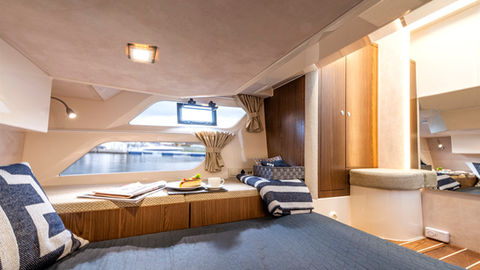

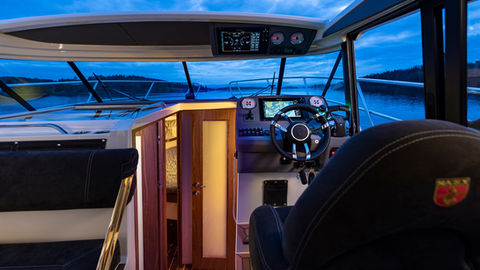

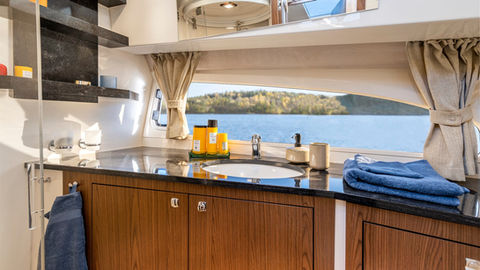

Interior Gallery
