Marex 360

The Marex 360 Cabriolet Cruiser is a full planning open cabin cruiser, with one of the largest convertible cockpits in its class. No boat under 40 feet features a larger cockpit area than the new Marex 360 CC. The popular solutions from the previous model – 350 Cabriolet Cruiser can be recognised and has been developed and implemented in this new, magnificent model.

Where are you spending time in the boat? By removing a saloon below deck and devoting the space saving to a larger cockpit area, this boat is designed for those who spend little time below decks. We focus on making the space in the cockpit perfect. An amazing 10 people can be accommodated around the table. The luxurious seating area is the perfect place to entertain! Modern storage innovations encompass expanded waterproof containers under the seats.

A handy door in the windscreen affords quick, safe and easy access to the foredeck, although the generous 28 cm side decks also allow easy movement around the boat. A well-designed helm position, excellent dashboard ergonomics and clear instrumentation provide a comfortable drive, while the spacious triple co-pilot seat assures an exciting experience for the whole family. The boat has a few engine options: 1 x Volvo Penta D6-400 (approx. top speed – 31 knots); 2 x Volvo Penta D4-300 (approx. top speed is 40 knots) or 2 x Mercury Diesel TDI 3.0L 260.



Lenght overall 11,49 (m) 37'-8''

Width 3,49 (m) 11'-5''

Depth 0,97 (m) 3'-2"

Dry weight 7700 kgs 16,975 lbs

Fuel tank 750 L 198 US gal.

Water tank 350 L 92 US gal.

Black water tank 190 L 50 US gal.

Hot water 60 L 16 US gal.

Number of passengers* 14

Category B

Fuel tank CE

Cabin 4 + 3


Standard Equipment

Antifouling boat + shaft
Battery charger (60A) and shore connection with 25m cable
Battery pack (4 x lead-acid deep discharge + 1 x lead-acid start for each engine) (~480Ah)
Bilge pump automatic (2pcs)
Curtains in cabins
Defroster 10kW + hot air outlet in cockpit
El. main switches with buttons on dashboard and battery monitoring
Fire alarm in all cabins + engine room
Double drawer fridge 182L
Gas cooker and oven
Heater 5,5kW + CO alarms in cabins
Hot water w/120V-boiler 60L
Interceptors / trimflaps
Opening window in cockpit starboard side
Propeller BOW 6hp with remote control
Radio FUSION with external antenna and speakers
Shower on platform
USB in all cabins
MAREX developed ash on steps
Toilet electrical with electrical discharge and septic tank indication
Transportation wrapping
TV antenna with TV outlets
Windows wipers & washer from main fresh water tank
Wood floor and steps in cabin
Available with six different motor choices;
- 1 x DPI Volvo Penta D6-440 (440hp) + Soft Pack
- 2 x Bravo3 Mercury Diesel 3,0L 270 SD (2x270hp) + Joystick Axis Premium
- 2 x DPI Volvo Penta D4-300 (2x300hp) + Soft Pack
- 2 x DPI Volvo Penta D4-320 (2x320hp) + Soft Pack
- 1 x Volvo Penta D6-480 (480hp) + Soft Pack (reverse shaft)
- 2 x Volvo Penta D4-320 (2x320hp) + Soft Pack (reverse shaft)


Options & Part Number

Air conditioner- price per cabin / MA-43360-02

Anchor chain s/s instead of lead rope (50m) / MA-43360-03

Anchor chain counter on dashboard / MA-43360-04

Anchorwinch AFT electric with lead-rope (14mm X 50m) with remote control / MA-43360-05

Anchorwinch FRONT electric with lead-rope (14mm X 50m) with remote control / MA-43360-06

Anchorwinch prepared for, el wires pulled through / MA-43360-07

Audio option 2: standard + amplifier + subwoofer / MA-43360-08

Battery extra 95Ah (price is per battery) / MA-43360-09

Battery upgrade to service-free AGM (price is per battery) includes charger upgrade / MA-43360-10

Bedding set for 1 bed (price per set: includes 1 sheet+2 blanket covers 140x200 + 2 pillow covers 50x70) / MA-43360-12

Bow ladder / MA-43360-13

Bow sprit with ladder / MA-43360-14

Camera for back view / MA-43360-15

Courtesy lights / MA-43360-16

DAB (if You don’t have FM) module for FUSION radio / MA-43360-17

Davits, foldable in s/s / MA-43360-18

Dimmers for LED lights (price per one group) / MA-43360-19

Dimmable mood lights on wooden rails / MA-43360-11

Installation of a switch or any socket (12V/antenna/230V/etc.) The place must be specified (price per item) / MA-43360-20

El sockets of UK;CH;NZ;AU standards / MA-43360-21

External window sun protective cover / MA-43360-22

Fenderbox/wall in engineroom - ask for availability / MA-43360-23

Fenders w/socks & Marex logo (4pcs) + mooring ropes (6 x 7m) / MA-43360-24

Foldable radar mast / MA-43360-25

Freezer/fridge drawer (-15…+4) 35L / MA-43360-34

Generator diesel Whisper power Marine (~4kW) + 6A separate charger / MA-43360-26

Grey water tank / MA-43360-27

Glomex Wifi/4G Webboat LITE (4G requires SIM Card) / MA-43360-28

High pressure deck wash pump from fresh water tank and sea + automatic furling / MA-43360-29

Inverter combi 12/120V 2000 with 60A charger instead of STD / MA-43360-30

Inverter combi 12/120V 3000 with 100A charger instead of STD / MA-43360-31

LED docking lights top mounted / MA-43360-32

Magnezium anodes instead of zinc/aluminium / MA-43360-33

Mosquito nets set for all windows (not for side door) / MA-43360-35

Over matrasses set (visco-elastic memory material) (all cabins) / MA-43360-36

Prepared for hydraulic autopilot (hydraulic hoses, 12V, fuse) shaft / MA-43360-37

Propeller AFT thruster 4hp with remote control / MA-43360-38

Rudder possition for shaft / MA-43360-39

Searchlight with joystick control / MA-43360-40

Shore power automatic furler / MA-43360-45

Solar panels 436W / MA-43360-41

Sun deck shading tent (front) / MA-43360-42

Sun deck/floating mattress on the front deck / MA-43360-46

Lounger on the front deck with floating mattress / MA-43360-43

Teak option 1: Full pack Options 2,3,4 included (synthetic teak option +5%) / MA-43360-47

Teak option 2: Sidewalks (synthetic teak option +5%) / MA-43360-44

Teak option 3: Platform (synthetic teak option +5%) / MA-43360-48

MAREX developed ash option 4: Aft deck floor (synthetic teak option +5%) / MA-43360-54

Transportation protection/cover / MA-43360-55

Underwater lights 2 pcs on transom (color: white) / MA-43360-56

Underwater lights 2 pcs on transom (color: RGB) / MA-43360-49

Volvo Penta active corrosion protection for z-drives (double engine) / MA-43360-50

Volvo Penta active corrosion protection for z-drives (single engine) / MA-43360-51

Window openable port side / MA-43360-52

Zipwake dynamic trim control system / MA-43360-53

Winter conservation of the boat before delivery / MA-43360-57

Exterior Gallery

Interior Gallery

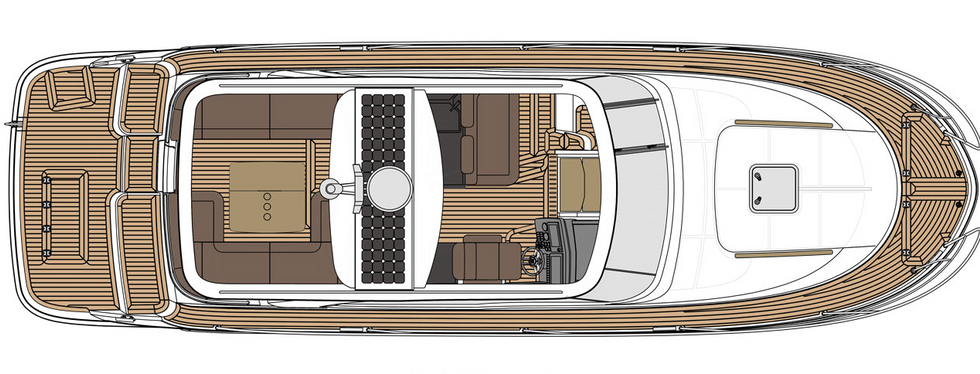

Deck Layout
